I remember the first PySpark codes I saw. They were pretty similar to the Scala ones I used to work with except one small detail, the yield keyword. Since then, I've understood their purpose but have been actively looking for an occasion to blog about them. Growing the PySpark section is a great opportunity for this!
Data Engineering Design Patterns
Looking for a book that defines and solves most common data engineering problems? I'm currently writing
one on that topic and the first chapters are already available in π
Early Release on the O'Reilly platform
I also help solve your data engineering problems π contact@waitingforcode.com π©
Generators
To put it simply, generators generate the data. They're not collections because they don't store anything. Instead, they just provide the items to the calling process one element at a time.
If this overly simplified definition is not enough, below you can find more details:
- yield. To create a generator, the function must output the results with a yield statement.
print('YIELD') def numbers_generator(): yield 1 yield 2 yield 3 next_number = 1 for nr in numbers_generator(): assert nr == next_number next_number += 1 - Iterator-like. The generator outputs one element at a time, exactly like an iterator.
- Storage-less and single-pass. Generators don't store anything, so they can be iterated only once.
next_number = 1 numbers = numbers_generator() for nr in numbers: assert nr == next_number next_number += 1 try: print(next(numbers)) raise Exception("The generator is a single-pass, this code shouldn't be reached.") except: print('Got exception') - Consumer need. The generated data is not materialized in a collection. To access it you have to define a consumer, like a for loop.
- Versatile. There is no data materialization so the memory pressure is smaller compared to the collections.
- Local state. The generator function saves the state between calls.
def generate_letters(): local_state_id = 0 yield f'a{local_state_id}' local_state_id += 1 yield f'b{local_state_id}' local_state_id += 1 yield f'c{local_state_id}' expected = iter(('a0', 'b1', 'c2')) generated_letters = generate_letters() for letter in generated_letters: assert letter == next(expected) - Parameterized. The generator accepts input parameters with the ... yield operator and send() method:
def generate_letters_with_send(): letter = '' while len(letter) < 10: letter = (yield) letter = f'{letter}a' yield letter send_generator = generate_letters_with_send() next(send_generator) assert send_generator.send('a') == 'aa' next(send_generator) assert send_generator.send('b') == 'ba' next(send_generator) assert send_generator.send('c') == 'ca'
I think you got the idea! But how does it work with PySpark?
Generators in mapPartitions
One place where you will encounter the generators is the mapPartitions transformation which applies the mapping function to all elements of the partition. As you might already deduce, the lazy character of the generators avoids materializing the mapped result in memory on the Python side. To understand it better, let's take the following code as an example:
from pyspark.sql import SparkSession
import resource
def using(point=""):
usage=resource.getrusage(resource.RUSAGE_SELF)
return '''%s: usertime=%s systime=%s mem=%s mb
'''%(point,usage[0],usage[1],
usage[2]/1024.0 )
spark = SparkSession.builder.master("local[*]")\
.appName("Yield in mapPartitions")\
.getOrCreate()
input_data = spark.sparkContext.parallelize(list(range(0, 10000000)), 1)
def map_numbers_with_list(numbers):
output_letters = []
for number in numbers:
output_letters.append(number*200)
if number == 0 or number >= 10000000 - 2:
print(using(f"list{number}"))
return output_letters
mapped_result = input_data.mapPartitions(map_numbers_with_list).count()
Agree, the code is not very representative because it only counts the elements. However, this simplistic example is useful to understand the difference between the list-based and the generator-based approach just below:
def map_numbers_with_generator(numbers):
for number in numbers:
yield number*200
if number == 0 or number >= 10000000 - 2:
print(using(f"list{number}"))
For the list-based approach, the memory usage printed from the using(...) function increases from 21MB in the first print to 406MB in the last one. It doesn't happen for the generator-based solution, where the used memory remains relatively stable around 21MB. The Python interpreter memory pressure is then lower for the generator.
Can you be more precise?

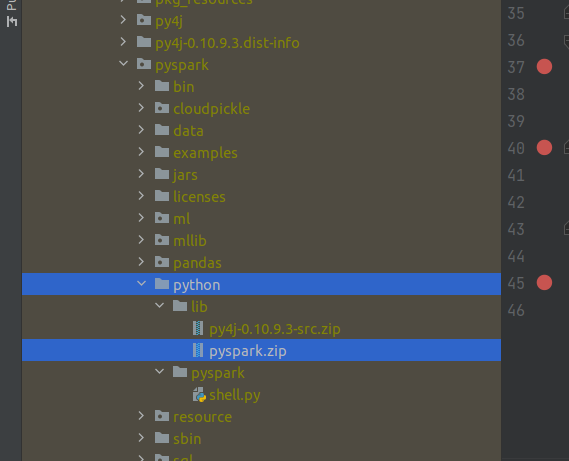

Yes, but I had to add some debugging code first. And I'm quite happy because figuring this out wasn't something easy. First, I tried the same approach as for the Scala API, hence adding some breakpoints in PyCharm but it didn't work. Next, I thought about logging but nothing was printed. Hopefully, I took a break and found the solution. The code executed by Python interpreter doesn't come from .py files of the package but from py.files of the pyspark.zip located here:
So I opened the archive, found the serializers.py and added some dummy print to the serialization and deserialization methods:
class AutoBatchedSerializer(BatchedSerializer):
"""
Choose the size of batch automatically based on the size of object
"""
def __init__(self, serializer, bestSize=1 << 16):
BatchedSerializer.__init__(self, serializer, self.UNKNOWN_BATCH_SIZE)
self.bestSize = bestSize
def dump_stream(self, iterator, stream):
print(f'AutoBatchedSerializer types for iterator={type(iterator)} and stream={type(stream)}')
print(f'AutoBatchedSerializer data for iterator={iterator} and stream={stream}')
batch, best = 1, self.bestSize
print(f'AutoBatchedSerializer batch, best = {batch}, {best}')
iterator = iter(iterator)
while True:
vs = list(itertools.islice(iterator, batch))
print(f'AutoBatchedSerializer stream VS for {vs}')
if not vs:
break
bytes = self.serializer.dumps(vs)
write_int(len(bytes), stream)
print(f'AutoBatchedSerializer Writing {len(bytes)} to {type(stream)}')
stream.write(bytes)
size = len(bytes)
if size < best:
batch *= 2
elif size > best * 10 and batch > 1:
batch //= 2
After, I reduced the range size to 10 and rerun the generator- and list-based apps, this time with the collect() action. Additionally, I introduced a print("yield") and print("append") inside the for loop from the mapPartitions function. Here is what I got:
# Generator-based app AutoBatchedSerializer types for iterator=<class 'generator'> and stream=<class '_io.BufferedWriter'> AutoBatchedSerializer data for iterator=<generator object map_letters_generator at 0x7efc26a6af90> and stream=<_io.BufferedWriter name=5> AutoBatchedSerializer batch, best = 1, 65536 yield AutoBatchedSerializer stream VS for [0] AutoBatchedSerializer Writing 17 to <class '_io.BufferedWriter'> yield yield AutoBatchedSerializer stream VS for [200, 400] AutoBatchedSerializer Writing 21 to <class '_io.BufferedWriter'> yield yield yield yield AutoBatchedSerializer stream VS for [600, 800, 1000, 1200] AutoBatchedSerializer Writing 28 to <class '_io.BufferedWriter'> yield yield yield 0 milliseconds AutoBatchedSerializer stream VS for [1400, 1600, 1800] AutoBatchedSerializer Writing 25 to <class '_io.BufferedWriter'> # List-based app append append append append append append append append append append AutoBatchedSerializer types for iterator=<class 'list'> and stream=<class '_io.BufferedWriter'> AutoBatchedSerializer data for iterator=[0, 200, 400, 600, 800, 1000, 1200, 1400, 1600, 1800] and stream=<_io.BufferedWriter name=5> AutoBatchedSerializer batch, best = 1, 65536 AutoBatchedSerializer stream VS for [0] AutoBatchedSerializer Writing 17 to <class '_io.BufferedWriter'> AutoBatchedSerializer stream VS for [200, 400] AutoBatchedSerializer Writing 21 to <class '_io.BufferedWriter'> AutoBatchedSerializer stream VS for [600, 800, 1000, 1200] AutoBatchedSerializer Writing 28 to <class '_io.BufferedWriter'> AutoBatchedSerializer stream VS for [1400, 1600, 1800] AutoBatchedSerializer Writing 25 to <class '_io.BufferedWriter'> AutoBatchedSerializer stream VS for []
The logs are similar except the input iterator which corresponds to the data type returned by the mapping function. Of course, it implies a different data generation method that you can see by comparing the "append" with "yield" prints (all at once vs one at a time).
I must admit that I'm not fully satisfied with the article because I'm not proficient with PySpark debugging. However, I hope that it gives enough details to understand the difference between the generator- and list-based mapping function and its impact on the job.
